Load. Prime.
Set. Store.
How to load, prime, set and store the instrument. Then the volume at every setting and the concentration in every cartridge.

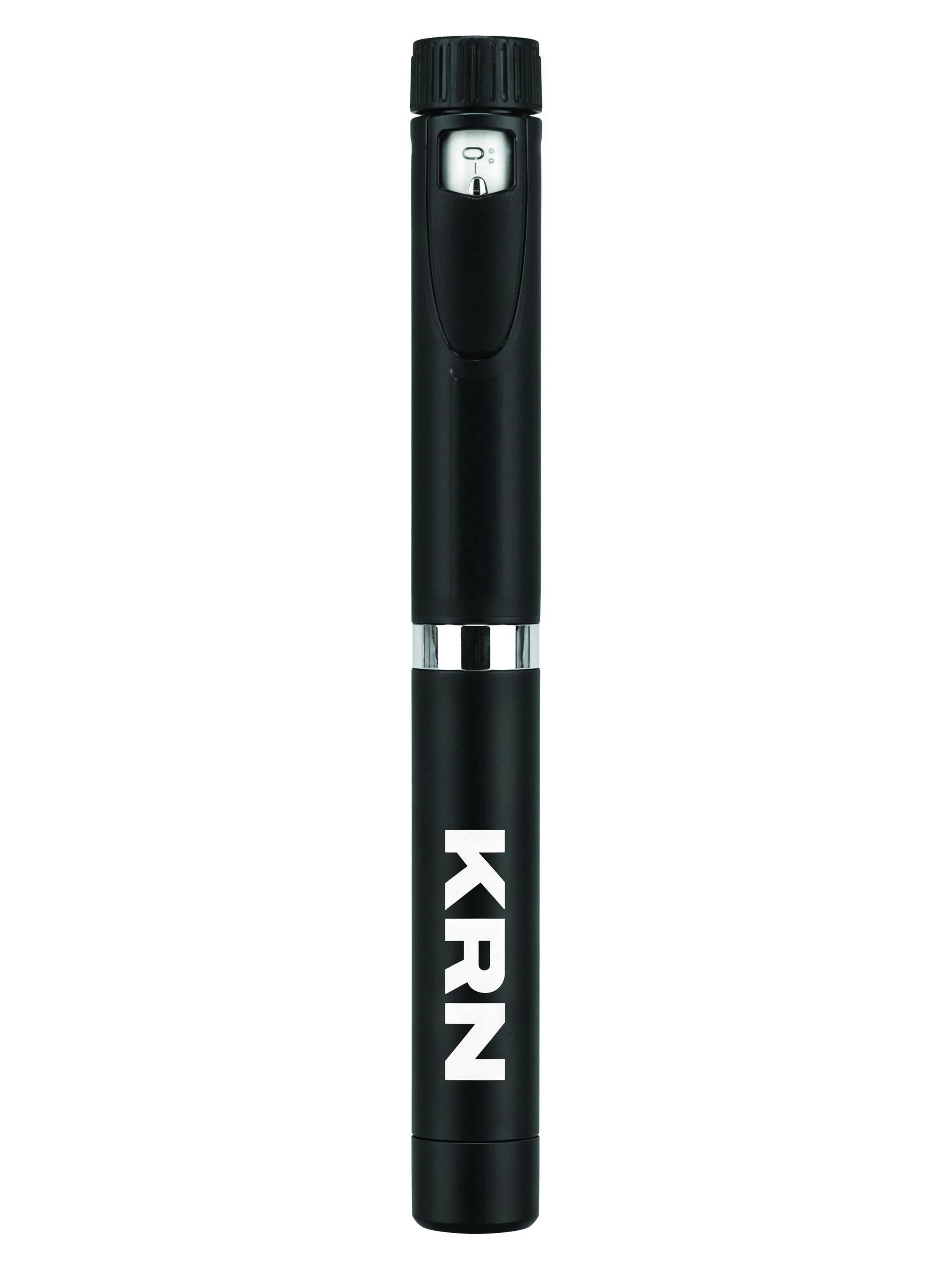

The
instrument.
Five numbers, twelve clicks between each.
Shows the position you have set.
The cover pulls off just below it.
Carries the cartridge and the tip.
Off for loading and use. On for storage.
What you
will need.
The seal is intact, the lot number matches its record, and the expiry has not passed.
32G × 4 mm. Not supplied. A new one for every use.
Within reach before a tip is opened.
Under your own laboratory procedures.
Load a
cartridge.
Once per cartridge.
- 01Pull the cover off
It comes away just below the chrome ring.
- 02Unscrew the clear holder
Lift out the used cartridge if there is one.
- 03Reset the push rod
Let the rod inside the body fall back, or press it in until it sits flush.
- 04Slide the cartridge in
Sealed end first, so the seal ends up at the tip end, away from the dial.
- 05Screw the holder back on
Firm, not forced. A new cartridge takes more priming clicks than one already in use.
Every
use.
Attach, prime, set, dispense, store.
- 06Attach a tip
Push a new tip onto the end of the holder and twist until it seats. Take off the outer cap, then the inner cap, and keep the outer cap for taking the tip off.
- 07Prime
With the tip pointing up, give one click, press, and repeat until you feel resistance and a drop appears. The drop means the air is out.
- 08Set the dial
Turn until the window shows the position you need, counting clicks for anything between the numbers. Gone too far? Turn it back. Nothing leaves until you press.
- 09Dispense
With the tip over or inside the receiving vessel, press the dial all the way in until the window reads 0, then hold it there for six seconds.
- 10Store
Outer cap back on, push down and twist the tip off, straight into the sharps container. Cover back on, then back in the fridge at 2 to 8 °C, out of the light and never frozen.
Never store it with a tip attached. A tip left on lets air in and liquid out.
What each
setting dispenses.
Twelve clicks between each number. Count clicks for anything in between.
| Dial setting | Clicks | Volume |
|---|---|---|
| 1 click | 1 | 0.01 mL |
| 6 clicks | 6 | 0.06 mL |
| #1 | 12 | 0.12 mL |
| #2 | 24 | 0.24 mL |
| #3 | 36 | 0.36 mL |
| #4 | 48 | 0.48 mL |
| #5 | 60 | 0.60 mL |
What each
cartridge holds.
Every cartridge holds a nominal 3.0 mL. Each blend is pre-compounded and analysed as one formulation.
| Component | Content | mg per mL |
|---|---|---|
| BPC‑157 | 10 mg | 3.33 |
| TB‑500 | 10 mg | 3.33 |
| Total peptide | 20 mg | 6.67 |
| Component | Content | mg per mL |
|---|---|---|
| NAD+ | 500 mg | 166.67 |
| Component | Content | mg per mL |
|---|---|---|
| GHK‑Cu | 50 mg | 16.67 |
| BPC‑157 | 10 mg | 3.33 |
| TB‑500 | 10 mg | 3.33 |
| Total peptide | 70 mg | 23.33 |
| Component | Content | mg per mL |
|---|---|---|
| GHK‑Cu | 50 mg | 16.67 |
| BPC‑157 | 10 mg | 3.33 |
| TB‑500 | 10 mg | 3.33 |
| KPV | 10 mg | 3.33 |
| Total peptide | 80 mg | 26.67 |
CONCENTRATION = STATED CONTENT ÷ 3.0 mL NOMINAL FILL, TO TWO DECIMAL PLACES
The only
maths.
AN ILLUSTRATION ONLY · THESE NUMBERS ARE NOT A KRN PRODUCT
Quick
fixes.
Keep going one click at a time until you feel resistance. Still nothing? Fit a new tip.
The dial turns freely whatever is left, so check the level through the clear holder first.
The tip is blocked or not seated. Fit a new tip and prime again.
The tip is cross-threaded. Take it off, bin it and fit a new one.
Do not use it. Contact us with the lot number.
Email hello@krnpeptides.com with your order or lot number.
Every unit answers
to its lot.
Scan the code on any unit to open its lot record and signed certificates, including the stated content of that cartridge.
